Light Channel 0.6" DIY Surface Mount Micro Grazer 24VDC Surface Mount Light Channel,Static White & Color, Tunable White, Warm Dim & RGB

View Additional Product Images
Features & Benefits
  • Cut and assemble in field

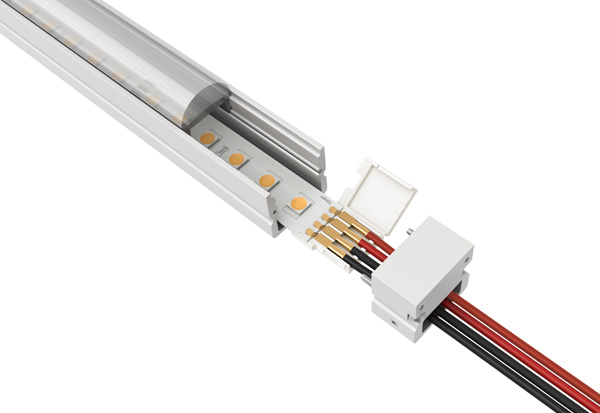

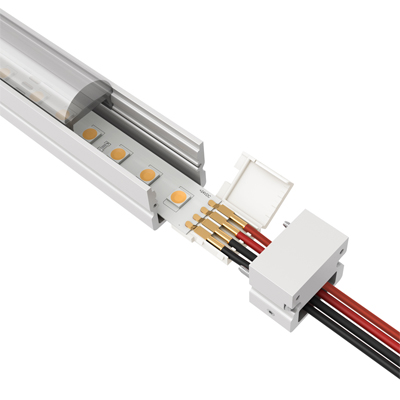

  • Snap & Light Solderless Connections reduce labor during installation
  • 24VDC LED Stomp Strip inside a slim, paintable aluminum extrusion offers excellent color-rendering
  • 5 oz of copper provides better heat dissipation, less voltage drop
  • Surface mount channel is sold in 2, 4, 5, 8, and 10 foot increments
  • Static White Options: 2.5W I 5W I 7.5W Options 2000K-5700K options.
  • Warm Dim, Dim-To-Warm: 30D dims from 3000K to 2000K, 27D dims from 2700K to 2000K. 5 watt only.
  • Tunable White: 2000K-6500K (2K6K) or 2700K-6500K (27K6)
  • Dynamic Color: (RGB)
  • Static Color: Amber (AAA), Green (GGG), Blue (BBB), Red (RRR)
  • Clear 7° Lens provides maximum light levels and will show LED dots
  • Linear Frosted Lens projects 20° lines of light, some LED dotting
  • Low voltage up to 100 watt, Class 2 wiring, no need for conduit pipe
  • 50-watt power supply fits in J Box (PS-60L-ELV-24VDC)
  • 5 year pro-rated warranty included
