Lyra 60 & 120

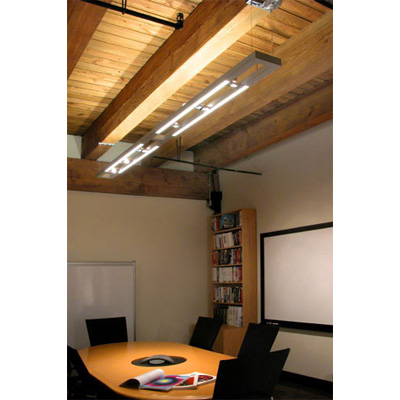

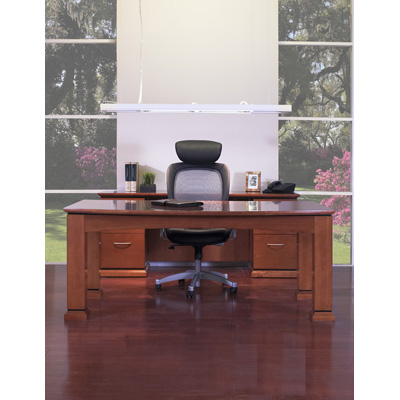

Additional Photos:

Lyra series of 60" (152cm) and 120" (305cm) linear suspensions combine T5 fluorescent and MR16 halogen lamps for application in offices, hallways, retail, conference rooms, kitchens or contemporary dining. 26" (66cm), 48" (122cm) and 96" (244cm) versions also available. White diffuser for fluorescents, soft diffusing lenses and eggcrate louvers prevent glare from MR16s. Constructed of extruded aluminum alloy in satin aluminum, black or white finish. 58" (147cm) of field adjustable mounting cable. Clear electrical cable can be field wired for separate switching between fluorescent and halogen sources (may dim halogen). Two or four T5-3500K high output fluorescent lamps (included) provide diffused direct/indirect light. Three or six 50 watt GE ConstantColor MR16 lamps (included) provide directional light. MR16 lamp holders are adjustable on the vertical and horizontal axes. Low-voltage electronic transformers and electronic ballasts included. All available in 120V, 230V (50Hz) or 277V (60Hz).

Diffuser:
White

Body Finish:
Satin Aluminum, Black or White

Lamp:
Halogen (H) + Fluorescent (F)
60 - 3xMR16/GU5.3/50W/12V +
2xT5HO/MINI-BIPIN/54W
120 - 6xMR16/GU5.3/50W/12V +
4xT5HO/MINI-BIPIN/54W

Total Wattage:
60 - 258W
120 - 516W

Dimmer:
Halogen - low voltage electronic
Fluorescent - electronic ballast; not dimmable

Dimensions:
60 - L 60" x W 8" x H 2"
L 152cm x W 20cm x H 5cm
120 - L 120" x W 8" x H 2"
L 305cm x W 20cm x H 5cm

Weight:
60 - 13 lbs (6kg)
120 - 24 lbs (11kg)

Ordering Code

Ordering Code		Size		Lamp		Voltage
Lyra	-	60	-	SA	-	Standard 120V (leave blank)
		- 60" (152cm) - 120" (305cm)		- SA Satin Aluminum - WH White - BK Black		- 2 230V 50Hz - 3 277V 60Hz
