Xenon Flex Strip Kit
Ordering Kit with Specification Guide will include all lamps/bulbs, correct size transformer and complete kit hardware for installation. Xenon low-voltage flexible linear light strip made of 10-gauge copper wire with clear insulation and white high-temperature Polycarbonate. Lamp sockets with twin weather-proof stainless steel spring clips. Lamp spacing 2.25” (5.75cm) on center with 5.3 sockets per foot. Maximum load 25 amps; 24V/600W or 12V/300W (transformer required). Using 24 volt allows twice the length as 12 volt. Fully dimmable, field-cuttable and flexible up to 90 degrees. May be made rigid with C-Channel (sold separately).
Applications:
Indoor or damp locations. Cove lighting, accent toe kicks, undercabinet, display cases, awnings.
Lamp:
Frosted Xenon Festoon 3W or 5W; 12V or 24V (sold separately).
Wattage:
3W or 5W per socket; 16W or 28W per foot
Average Lamp Life:
3W - 10,000 Hrs
5W - 20,000 Hrs
Dimmer:
Low-voltage magnetic or electronic
Dimensions:
.75" (1.9cm) wide and .875" (2.2cm) high

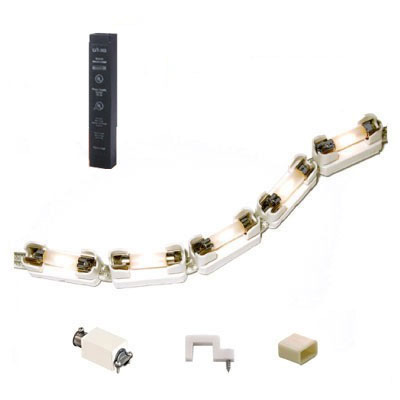

Kit includes:
Specified length of Flex Strip in feet with Xenon lamps included, correct size transformer, L-Straps, Splice Box and End Cap
Extra Accessories:
C-Channel, C-Clip, L-Channel, Canopy, Power Connector,
MR8/11 and MR16 Swivel Lamp Holders, and Side Socket
Ordering Code
| Ordering Code |
Lamp Type |
Voltage | Wattage | Max. Length in Ft. |
Transformer | |||
| FK XF | - | 12V 3 | - | 37 | - | MA | ||
|
- 12V - 12V - 24V - 24V |
- 3 - 5 - 3 - 5 |
Up To 16 Ft (548.64cm) Up To 11 Ft (335.28cm) Up To 37 Ft (1127.76cm) Up To 22 Ft (670.76cm) |
- MA Magnetic - EL Electronic (Only up to 300W) |
|||||
