Alpha

Additional Photos:

Specification Sheet (.pdf)

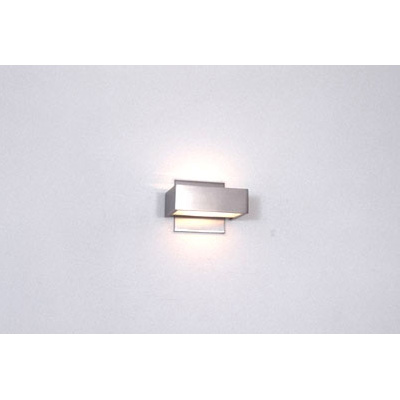

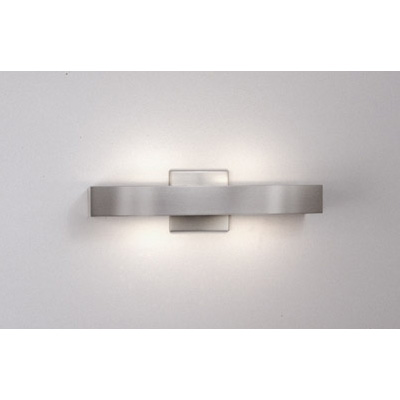

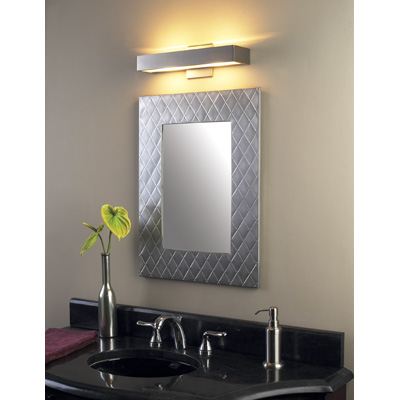

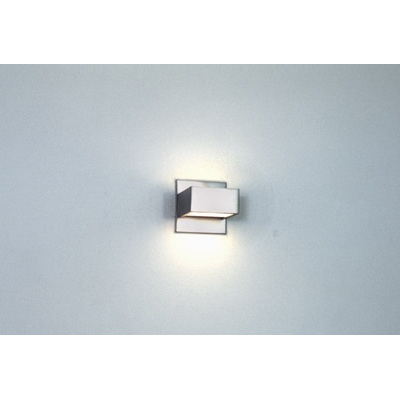

Alpha wall and vanity series features white glass diffusers on both the top and the bottom of the rectangular metal shade, available in satin nickel or chrome finish. Available in 4" (10cm), 7" (16.5cm), 16" (40.5cm), 24" (61cm), 32" (81.25cm) and 48" (122cm) widths. All sizes available in line voltage halogen. Compact fluorescent lamping available in 7" (16.5cm), 16" (40.5cm), 24" (61cm) and 32" (81.25cm) widths. T5HO fluorescent lamping (F1) with optional dimmable ballast (F1D) available in 48" width. Lamp(s) and electronic ballasts included. General upward and downward light distribution. ADA compliant.

Shade Color:
White

Body Finish:
Satin Nickel or Chrome

Lamp:
Halogen (H)
4H1 - T4/G9/60W
7H1 - T3Short/RSC/100W
16H1 - 2xT3Short/RSC/75W
24H1 - 3xT3Short/RSC/75W
32H1 - 4xT3Short/RSC/75W
48H1 - 5xT3Short/RSC/75W
Fluorescent (F)
7F1 - T4/G24Q-1/13W
16F1 - T5/2G11/24W
24F1 - T5/2G11/40W
32F1 - 2xT5/2G11/24W
48F1/F1D - T5HO/MINI-BIPIN/54W

Total Wattage:
4H1 - 60W
7H1 - 100W
16H1 - 150W
24H1 - 225W
32H1 - 300W
48H1 - 375W

7F1 - 13W-3500K
16F1 - 24W-3500K
24F1 - 40W-3500K
32F1 - 48W-3500K
48F1/F1D - 54W-3500K

Dimmer:
Halogen (H1) - incandescent
Fluorescent (F1) - electronic ballast; not dimmable
Fluorescent (F1D) - electronic ballast; dimmable* (48" only)
*Lutron® dimmer required - Diva (DVF-103P) or Nova (NF-10) recommended

Dimensions:
4 - W 4.3" x H 2" x D 4"
     W 10cm x H 5cm x D 10cm
7 - W 6.5" x H 2" x D 4"
     W 16.5cm x H 5cm x D 10cm
16 - W 16" x H 2" x D 4"
       W 40.5cm x H 5cm x D 10cm
24 - W 24" x H 2" x D 4"
       W 61cm x H 5cm x D 10cm
32 - W 32" x H 2" x D 4"
       W 81.25cm x H 5cm x D 10cm
48 - W 48" x H 2" x D 4"
       W 122cm x H 5cm x D 10cm

Weight:
4 - 1.5 lbs (0.7kg)
7 - 2 lbs (0.9kg)
16 - 4 lbs (1.8kg)
24 - 5.5 lbs (2.5kg)
32 - 10 lbs (4.5kg)
48 - 14lbs (6.4kg)

Ordering Code

Ordering Code		Size		Lamp		Finish		Voltage
ALPHA	-	4	-	H1	-	SN	-	Standard 120V (leave blank)
		- 4" (10cm) - 7" (15.25cm) - 16" (40.5cm) - 24" (61cm) - 32" (81.25cm) - 48" (122cm)		- H1 Halogen - F1 Fluorescent (7", 16", 24", 32" & 48") - F1D Fluorescent Dimmable (48" only)		- SN Satin Nickel - CH Chrome		- 2 230V 50Hz - 3 277V 60Hz (F1 only)
